iOS18 邮件TabBar效果

iOS18改版的邮件 App tabBar 的联动效果。

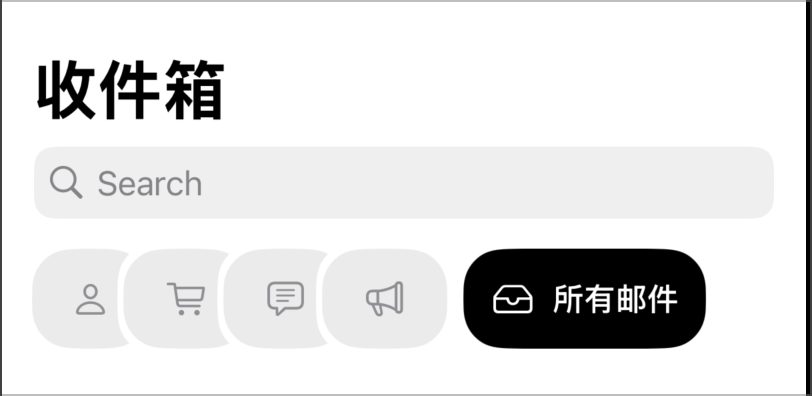

收拢效果《显示所有邮件》

CleanShot 2025-07-07 at 15.44.49@2x.png

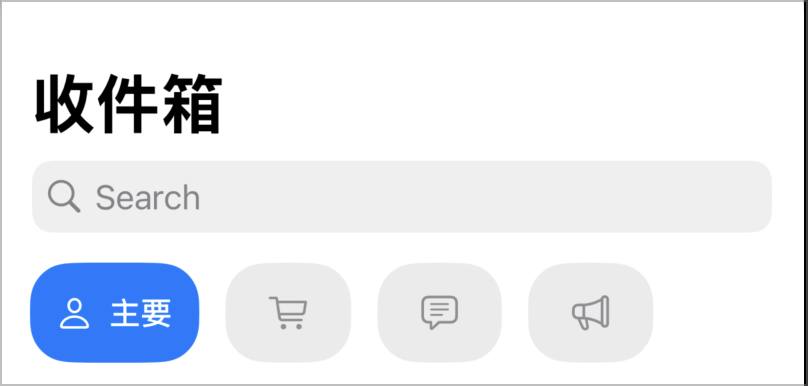

展开效果《非所有邮件》

CleanShot 2025-07-07 at 15.45.38@2x.png

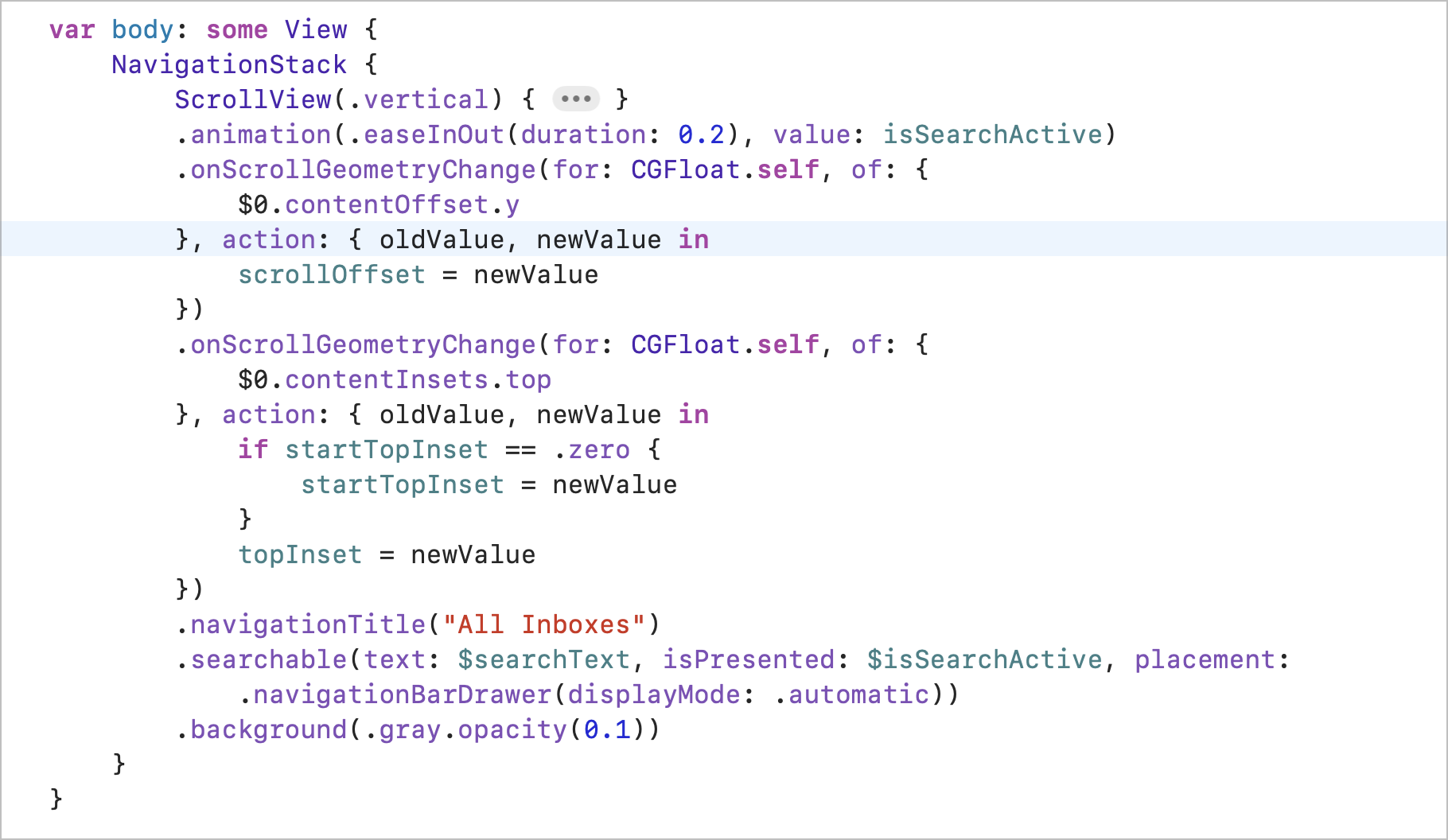

导航栏框架

CleanShot 2025-07-07 at 16.23.23@2x.png

滚动视图垂直布局
基于滚动的几何变化修饰符：onScrollGeometryChange
实现可搜索功能，并设置了导航栏抽屉：navigationBarDrawer
自定义Mail 的 tabBar

自定义 Mail 的 tabBar

struct CustomTabbar: View {
    @Binding var activeTab: TabModel
    @Environment(\.colorScheme) private var scheme

    var body: some View {
        GeometryReader { _ in
            HStack(spacing: 8) {
                HStack(spacing: activeTab == .allMails ? -15 : 8) {
                    ForEach(TabModel.allCases.filter({ $0 != .allMails }), id: \.rawValue) { tab in
                        ResizableButton(tab)
                    }
                }

                if activeTab == .allMails {
                    ResizableButton(.allMails)
                        .transition(.offset(x: 200))
                }

            }
            .padding(.horizontal, 15)
        }
        .frame(height: 50)
    }

    @ViewBuilder
    func ResizableButton(_ tab: TabModel) -> some View {
        HStack(spacing: 8) {
            Image(systemName: tab.symbolImage)
                .opacity(activeTab == tab ? 0 : 1)
                .overlay {
                    Image(systemName: tab.symbolImage)
                        .symbolVariant(.fill)
                        .opacity(activeTab == tab ? 1 : 0)

                }

            if tab == activeTab {
                Text(tab.rawValue)
                    .font(.callout)
                    .fontWeight(.semibold)
                    .lineLimit(1)
            }
        }
        .foregroundStyle(tab == .allMails ? schemeColor : tab == activeTab ? .white : .gray)
        .frame(maxHeight: .infinity)
        .padding(.horizontal, activeTab == tab ? 13 : 20)
        .background {
            Rectangle()
                .fill(activeTab == tab ? tab.color : .inActiveTab)
        }
        .clipShape(.rect(cornerRadius: 20, style: .continuous))
        .background {
            RoundedRectangle(cornerRadius: 20, style: .continuous)
                .fill(.background)
                .padding(activeTab == .allMails && tab != .allMails ? -3:3)
        }
        .contentShape(.rect)
        .onTapGesture {
            guard tab != .allMails else { return } // all mails 点击没反应

            withAnimation(.bouncy(duration: 0.3)) {
                if tab == activeTab {
                    activeTab = .allMails
                } else {
                    activeTab = tab
                }
            }
        }
    }

系统导航栏自定义

init() {

        let appearance = UINavigationBarAppearance()
        appearance.configureWithTransparentBackground()
        appearance.shadowColor = .clear
        appearance.backgroundColor = .clear
        /// 描述导航栏以标准高度显示时要使用的外观属性。
        UINavigationBar.appearance().standardAppearance = appearance
        /// 描述当关联的 UIScrollView 到达与导航栏相邻的边缘（导航栏的顶部边缘）时，
        /// 导航栏要使用的外观属性。如果未设置，则将改为使用修改后的标准外观。
        UINavigationBar.appearance().scrollEdgeAppearance = appearance
    }

Mail 的 tabBar 和导航栏联接一起

// tabBar
                    CustomTabbar(activeTab: $activeTab)
                        .frame(height: isSearchActive ? 0 : nil, alignment: .top)
                        .opacity(isSearchActive ? 0 : 1)
                        .padding(.bottom, 10)
                        .background {
                            let progress = min(max((scrollOffset + startTopInset - 110)  / 15, 0),1)
                            ZStack(alignment: .bottom) {
                                Rectangle()
                                    .fill(.ultraThinMaterial)

                                // 导航栏分割线
                                Rectangle()
                                    .fill(.gray.opacity(0.3))
                                    .frame(height: 1)
                            }
                            .padding(.top, -topInset)
                            .opacity(progress)
                        }
                        .offset(y: (scrollOffset + topInset) > 0 ? (scrollOffset + topInset) : 0)
                        .zIndex(1000)

导航栏嵌套滚动视图拿到滚动相关信息

/// Scroll Properties
  @State private var topInset: CGFloat = 0
  @State private var startTopInset: CGFloat = 0
  @State private var scrollOffset: CGFloat = 0

  ScrollView(.vertical) {}
          .onScrollGeometryChange(for: CGFloat.self, of: {
              $0.contentOffset.y
          }, action: { oldValue, newValue in
              scrollOffset = newValue
          })
          .onScrollGeometryChange(for: CGFloat.self, of: {
              $0.contentInsets.top
          }, action: { oldValue, newValue in
              if startTopInset == .zero {
                  startTopInset = newValue
              }
              topInset = newValue
          })

拿到系统主题

@Environment(\.colorScheme) private var scheme

var schemeColor: Color {
    return scheme == .dark ? .black : .white
}

总结

一、核心功能模块

// 滚动响应系统
struct ScrollResponseConfig {
    let collapseThreshold: CGFloat = 50
    let transitionSpeed: CGFloat = 15
}

// 视图状态管理
class ViewStateManager: ObservableObject {
    @Published var searchPhase: SearchPhase = .inactive
    @Published var headerCollapseProgress: CGFloat = 0
}

二、视觉层级架构

三、关键技术实现

混合滚动检测：通过几何代理同时捕捉:

.onScrollGeometryChange(for: CGFloat.self, of: {
       $0.contentInsets.top // 监测安全区域变化
   })

.onScrollGeometryChange(for: CGFloat.self) {
   $0.contentOffset.y // 监测滚动位移
}

动效曲线控制：使用分段式进度计算

1	let progress = min(max((scrollOffset + startTopInset - 50) / 15, 0), 1)

布局优化方案：
- Z轴分层管理(.zIndex(1000))
- 条件高度约束(.frame(height: isSearchActive ? 0 : nil))
- 异步布局更新(.animation(.interactiveSpring, value: isSearchActive))
